MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

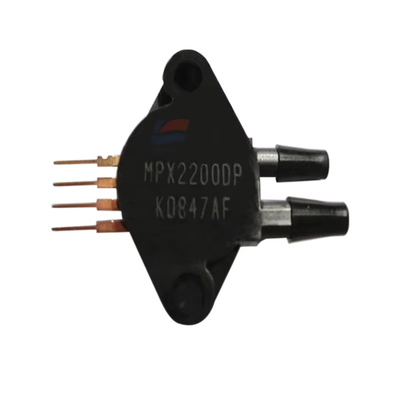

Large Image : MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

Product Details:

Place of Origin:	USA
Model Number:	MPX2200DP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

Description

Operating Pressure Range:

0 KPa To 200 KPa

Sensitivity:

0.2 MV/kPa

Supply Current:

6 MA

Operating Temperature Range:

- 40 °C To +125 °C

Highlight:

MPX2200DP pressure sensor for robotics

silicon piezoresistive pressure sensor

electronic pressure sensor for level indicators

MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching

Features:

Temperature - compensated over the range of 0 °C to +85 °C.
Offers high - accuracy and linear voltage output.
Available in absolute, differential, and gauge configurations.
Has easy - to - use chip carrier package options.

Applications:

Pump/motor controllers.
Robotics.
Level indicators.
Medical diagnostics.
Pressure switching.
Barometers.
Altimeters.

Pressure Type	Differential
Operating Pressure Range	0 kPa to 200 kPa
Maximum Overload Pressure	800 kPa
Sensitivity	0.2 mV/kPa
Output	Wheatstone bridge, typical full - scale output is 40 mV
Supply Voltage	Minimum 10 V, maximum 16 V
Supply Current	6 mA (typical)

MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching 0

Tag:

Oil Filled Pressure Sensor,

Piezoresistive Pressure Sensor,

Piezoresistive Differential Pressure Sensor
