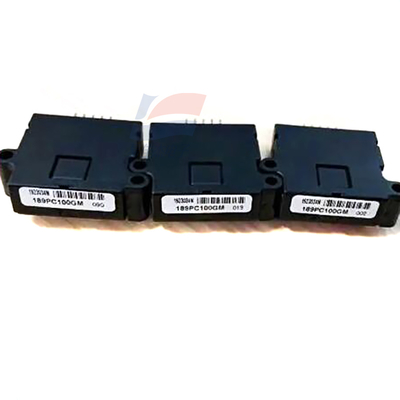

189PC100GM An Industrial Pressure Sensor Capable of Measuring Up to 100 Psi Used for Pressure Monitoring

Product Description:

YJJ 189PC100GM An Industrial Pressure Sensor Capable of Measuring Up to 100 Psi Used for Pressure Monitoring

Features:

Main parameters are as follows:

Measurement range and power supply

‌Pressure range‌: 0 - 100 psi (pounds per square inch)

‌Operating voltage‌: 7V to 16V

Environmental specifications

‌Temperature range‌: -40°C to 85°C

‌Package form‌: DIP6 (Industrial standard package) Performance indicators

Sensitivity: Not specified, but the common sensitivity range for similar products is 100 mV/g to 500 mV/g (for example, acceleration sensors)

Frequency response: Not specified, but most industrial sensors are calibrated below 100Hz

Application description

Suitable for industrial pressure monitoring scenarios, and the power supply and signal processing methods need to be adjusted according to the specific equipment parameters.

Description SENSOR GAUGE 0-100 PSI

Series 180PC

Packaging Bulk

Supply status Active

Application Board Mount

Pressure type Vented Gauge

Working pressure 100 PSI (689.48kPa)

Output type Analog Voltage

Output 1 V ~ 7 V

Accuracy -

Voltage - Power supply 7V ~ 16V

Port size Male - 0.37"" (9.4mm) Tube

Port style Barbless

Features Amplified output, Temperature compensated

Termination style PC Pin

Maximum pressure 250PSI (1723.69kPa)

Operating temperature -40°C ~ 85°C

Package 6-DIP Module
