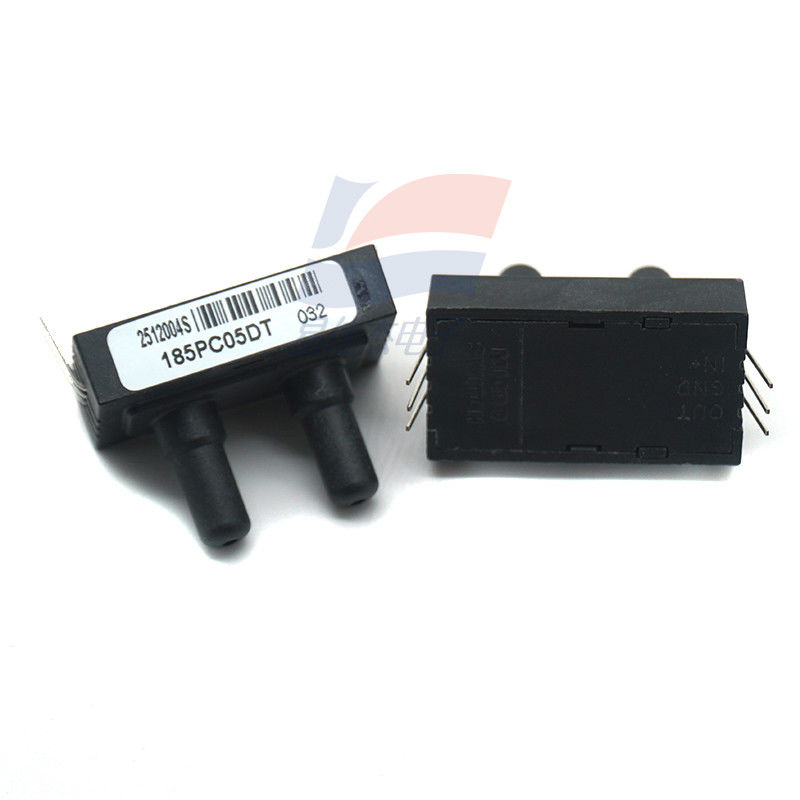

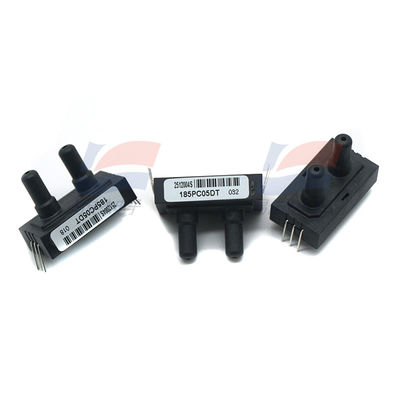

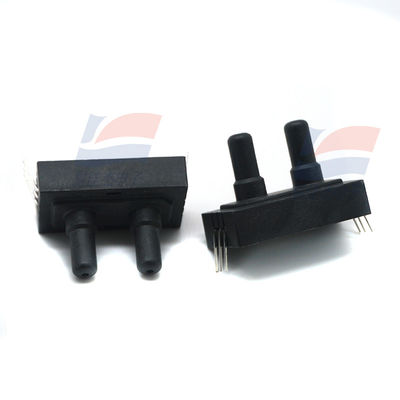

YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter

Product Description:

YJJ 185PC30DT Trigger Interface Pressure Sensor Transmitter

Features:

Differential pressure sensor. Here is the description of its core parameters: Basic Information

Model: 185PC30DT

Category: Pressure Sensor

Manufacturer: Honeywell Sensing and Control

Package Type: 6-DIP (Dual In-line Package)

Product Description: SENSOR DIFFERENTIAL 0-30 PSI (Differential Pressure Sensor, with a range of 0-30 pounds / square inch)

Core Performance Parameters

Pressure Type: Differential Pressure (measuring the pressure difference between two pressure ports)

Operating Pressure Range: 0-30 PSI (pounds / square inch, approximately 206.84 kilopascals)

Operating Temperature Range: -40°C ~ 85°C (stable operation within this temperature range, with no permanent harmful changes to performance parameters)

Structural and Connection Parameters

Port Specifications: Dual-port design, male type 0.197 inches (5mm) tubular interface, facilitating medium connection and enabling differential pressure measurement

Termination Type: PC pins (facilitating circuit board welding or plug-in connection)

Product type: pressure sensor for board - machine interface

RoHS:

Working pressure :0 psi to 15 psi

Pressure type :Gauge, Differential

Output type :Analog

Installation style :Through Hole

Port type :Dual Axial Barbless

Working power supply voltage :16 V

Minimum operating temperature: -40 C Maximum operating temperature :+ 85 C

Output voltage :6 V

Port size :5 mm

Operating power supply current :6 mA

Product type :Pressure Sensors

Factory Packing Quantity :10

Child categories: Sensors
