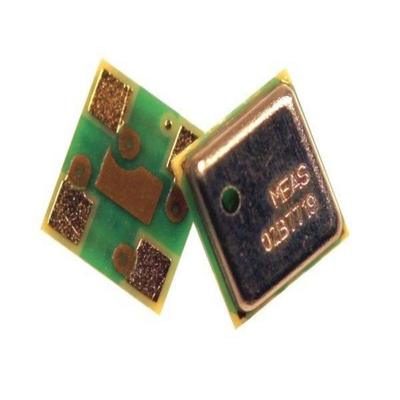

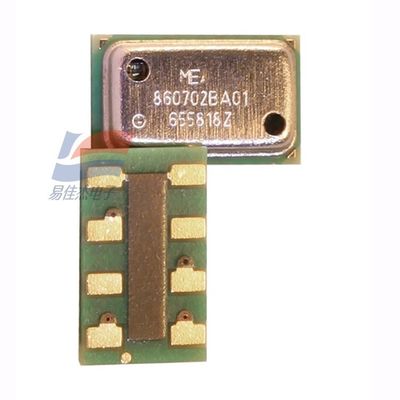

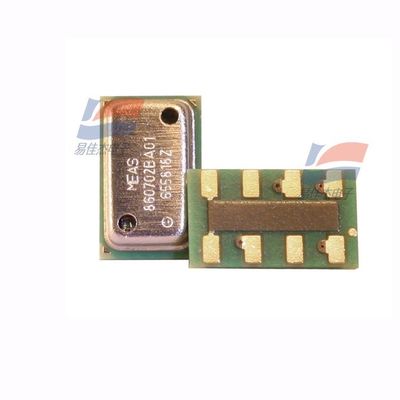

YJJ MS5611-01BA03 High-resolution Altimeter Sensor For Hand-Held Altimeter Barometer

Product Description:

YJJ MS5611-01BA03 High-resolution Altimeter Sensor For Hand-Held Altimeter Barometer

Features:

Ms5611 pressure sensor is a SPI and I² by MEAS (Switzerland).C bus interface of the new generation of high resolution pressure sensor, resolution can reach 10cm.The sensor module includes a high linearity of the pressure sensor and an ultra low power 24 Σ AD converter (factory calibration coefficient).Ms5607-02ba03 provides an accurate 24-digit value with different operation modes to improve conversion speed and optimize current consumption.High resolution temperature output enables altimeter/thermometer functions without additional sensors.Can be connected to almost any microcontroller.The communication protocol is simple and requires no programming of internal registers.The ms5607-02ba03 pressure sensor has only a small size of 5.0mm x 3.0mm and can be integrated into mobile devices.This sensor adopts the leading MEMS technology and benefits from MEAS (Switzerland) more than ten years of mature design and mass manufacturing experience, ensuring that the product has very low pressure signal lag and high stability.

Brand: Intersema

Output: 24-bit digital output

Range: 10 ~ 1200mbar

Package: metal

Operating temperature range: - 40 ℃ ~ 85 ℃

Accuracy: 25 ℃, 750-1.5 ~ + 1.5 mbar mbar

Power supply: 1.8v ~ 3.6v

Features: 1 mu A low power consumption, integrated digital pressure sensor (24 Δ Σ AD converter), I2C and SPI interface, up to 20 MHz, without external components (internal oscillator), resolution can be up to 10 cm

Type: absolute pressure

Electrical connection: surface mount

Typical applications: mobile altimeter/barometer system, bicycle computer, outdoor or multi-mode watch, data recorder, GPS, smartphone, air pressure compensation, air density compensation

Specifications:
