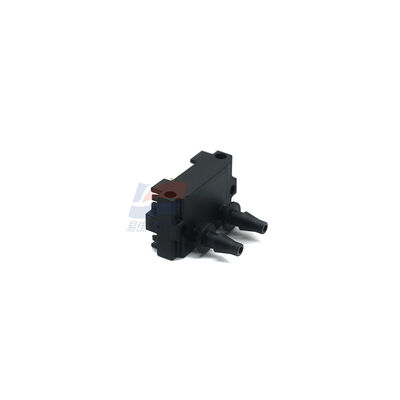

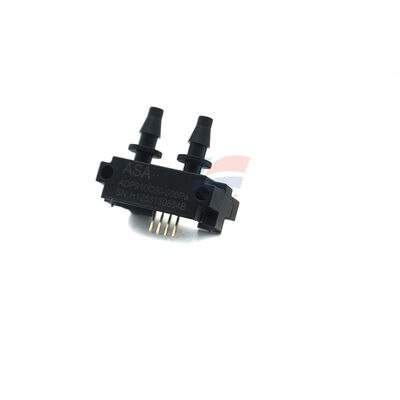

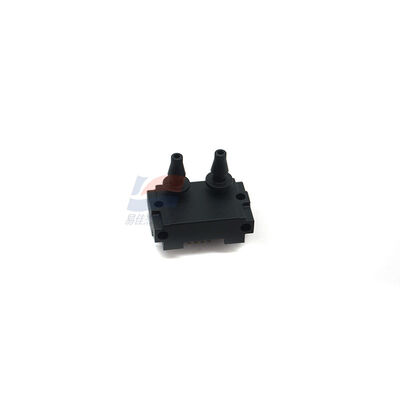

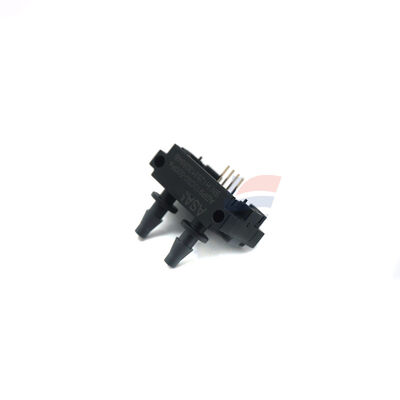

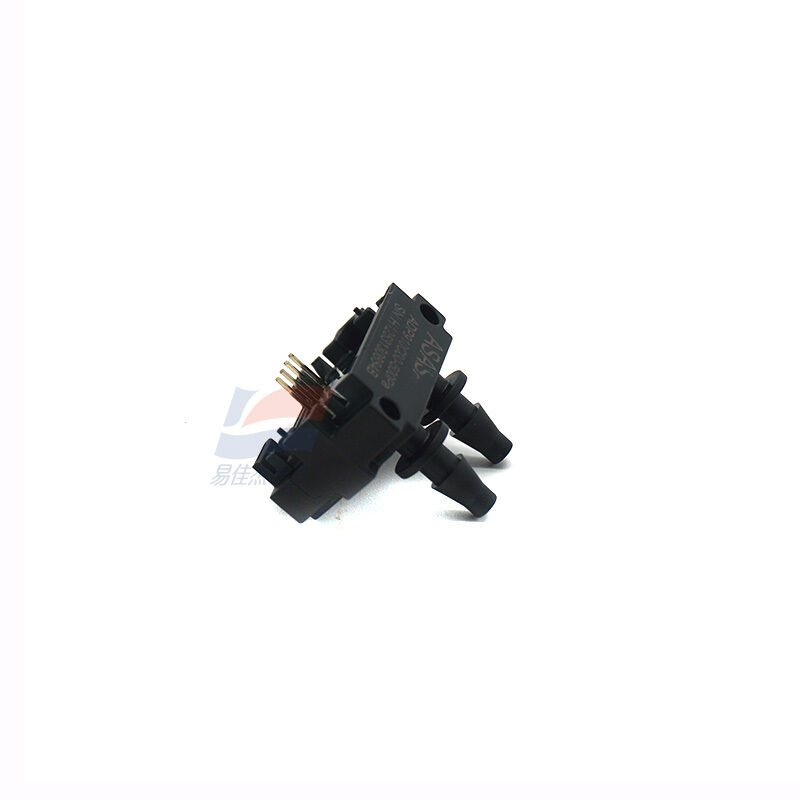

ADP910C00-500PA Digital Differential Pressure Sensor High Accuracy

Large Image : ADP910C00-500PA Digital Differential Pressure Sensor High Accuracy

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	ADP910C00-500PA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

ADP910C00-500PA Digital Differential Pressure Sensor High Accuracy

Description

Product Model:

ADP910

Operating Voltage:

3.2~5.5V

Operating Current:

≤12mA

Measuring Range:

-500~+500Pa

Highlight:

digital differential pressure sensor high accuracy

electronic pressure sensor with warranty

ADP910C00-500PA pressure sensor high performance

ADP910C00-500PA Digital Differential Pressure Sensor High Accuracy

ADP910 is a digital differential pressure sensor designed for high accuracy measurement of differential pressure with a response time of less than 2ms.The chip inside the sensor can measure the differential pressure of air, nitrogen, and oxygen through the effect of
airflow on the temperature field distribution around it.lt is characterized by high accuracy no drift, and high stability. At the same time, it has excellent performance in terms of sensitivity, shock resistance and temperature change etc. The ADp910 sensor is equipped
with a standard l2C interface for simple communication and can be easily connected to a microprocessor.

Specificcation:

Zero Point Precision	0.3Pa
Accuracy	Readingx3%
Zero Point	Repeatability 0.1Pa
Repeatability	Readingx0.5%
Annual Offset	< 0.05 Pa
Response Time	<2ms
Calibration	Gas Air
Fluid Compatibility	Air, Nitrogen,Oxygen (non-condensing)
Temp.Compensation Range	0~50℃
Temp Measuring Range	-40~+85℃
Temp.Repeatability	0.3℃
Temp. Accuracy	2℃℃(at -10~+60°℃) 3℃(at -40~-10℃和60~85℃)

ADP910C00-500PA Digital Differential Pressure Sensor High Accuracy 0
