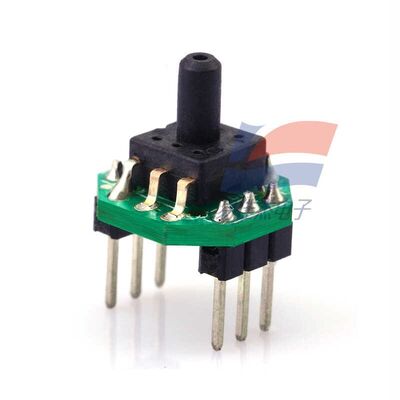

XGZP6847A XGZP6847D Pressure Sensor for Electronic Blood Pressure Monitors and Ventilators

Large Image : XGZP6847A XGZP6847D Pressure Sensor for Electronic Blood Pressure Monitors and Ventilators

Product Details:

Place of Origin:	CN
Model Number:	XGZP6847A XGZP6847D

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

XGZP6847A XGZP6847D Pressure Sensor for Electronic Blood Pressure Monitors and Ventilators

Description

Output Signal:

0.5 To 4.5 (powered By 5V)V

Zero-point Temperature Drift:

±0.03%FS/℃

Accuracy:

±1.0,±0.5,±2.5%Span

Full-range Temperature Drift:

±0.03%FS/℃

Highlight:

electronic blood pressure monitor sensor

ventilator pressure sensor

XGZP6847A pressure sensor

XGZP6847A XGZP6847D Pressure Sensor for Electronic Blood Pressure Monitors and Ventilators

Product Features:

Measurement range: -100kPa to 2.5kPa... 1500kPa
Gauge pressure type (positive pressure or negative pressure)
It is suitable for non-corrosive gases
The power supply is available in 5V, 3.3V or 3.0V
Standard voltage output or proportional voltage output is optional

Application field:

Medical fields such as electronic blood pressure monitors, ventilators, oxygen generators, and monitors
· Automotive electronics fields such as tire pressure gauges, power steering, brake assistance, and MAP sensors
In the field of sports and fitness equipment such as massagers, massage chairs, and air mattresses
· Fields such as water heaters, oxygen water machines, beer machines, coffee machines, air pumps, vacuum pumps, pressure gauges, electric breast pumps, vacuum cleaners, etc

Overload pressure	2× range < 500kPa
Compensation temperature	0~60℃
Measure the temperature of the medium	-10~85℃
Storage temperature	-40~150℃

XGZP6847A XGZP6847D Pressure Sensor for Electronic Blood Pressure Monitors and Ventilators 0
