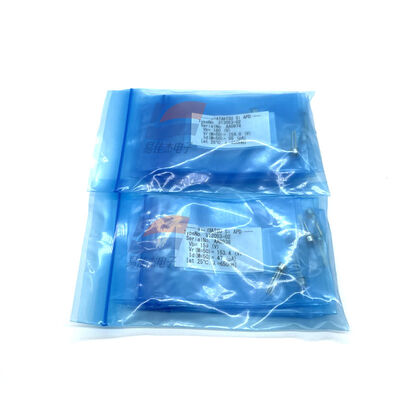

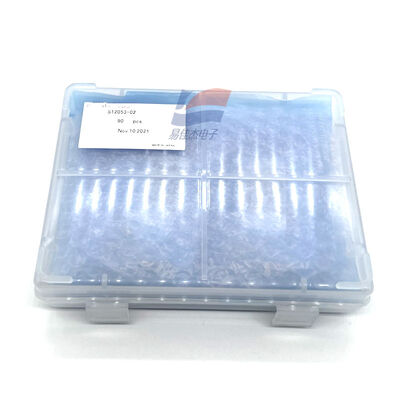

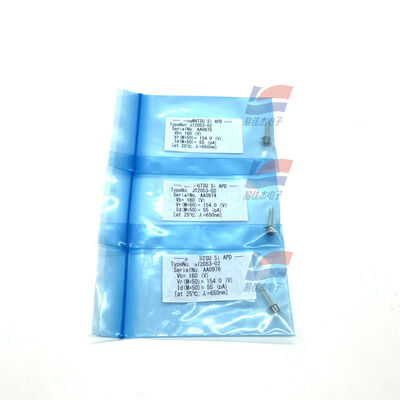

YJJ S12023-02 Near-Infrared Type Silicon Photodiode For Optical Distance Measuring Instrument

Product Description:

YJJ S12023-02 Near-Infrared Type Silicon Photodiode For Optical Distance Measuring Instrument

Features:

Low bias voltage, suitable for 800 nm band

This is an 800nm near-infrared silicon APD that can operate at low bias voltage of 200V or less.Suitable for FSO (Free Space Optics) and optical rangefinder applications.

Product features

Stable operation under low bias voltage

High speed response

High sensitivity and low noise

Detailed parameters

Type Near infrared (Low bias operation)

Photosensitive a

Encapsulated Metal

The encapsulation type is TO-18

Peak sensitivity wavelength (typical value) 800 nm

The spectral response range is 400 to 1000 nm

Sensitivity (typical value) 0.5a /W

Dark current (Max.) 0.5Na

Cutoff frequency (typical value) 1000 MHz

Junction capacitance (typical) 1 pF

Breakdown voltage (typical value) 150 V

Breakdown voltage temperature coefficient (typical value) 0.65 V/℃

Gain (typical value) 100

Ta=25 ℃, unless noted, Photosensitivity: λ=800 nm, M=1
