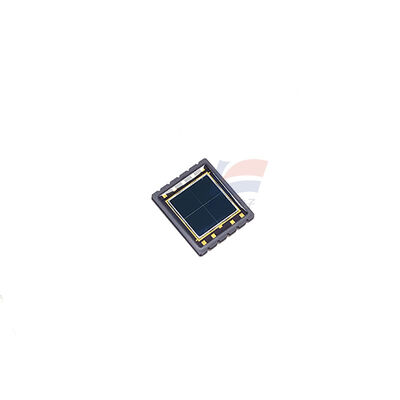

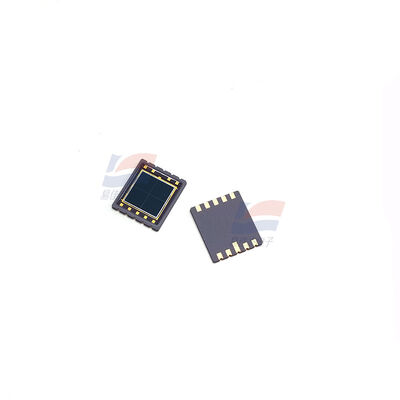

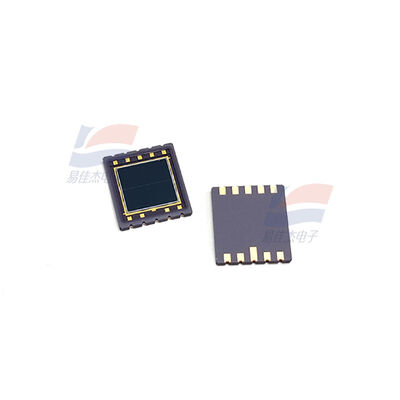

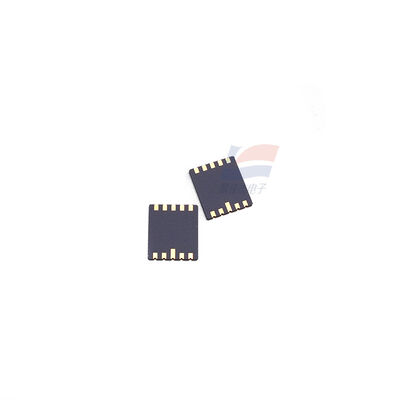

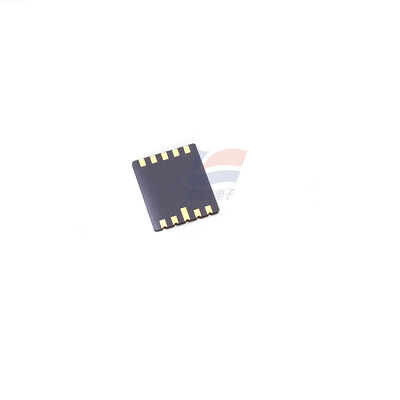

S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery

                    S5981 4 Segment Surface Mount Silicon PIN Photodiode for Industrial Processing and Precision Machinery

Applications:

• Laser optical axis alignment for industrial processing and precision machinery.
• Level meters in liquid/gas tanks for continuous level monitoring.
• Pointing devices and optical encoders for motion tracking and position control.
• Optical pickup systems for CD/DVD drives and barcode scanners.

Key Features:

1. 4 Segment Array: Independent channels for position sensing with low crosstalk between elements.
2. Large Active Area: 10×10 mm active region for high light collection efficiency.
3. Surface Mount Ceramic Package: Thin (1.26 mm) and robust for automated assembly and harsh environments.
4. High Photosensitivity: 0.72 A/W at 960 nm (peak wavelength) for sensitive IR detection.
5. Wide Spectral Range: 320~1100 nm covers UV to near IR, suitable for diverse light sources.
