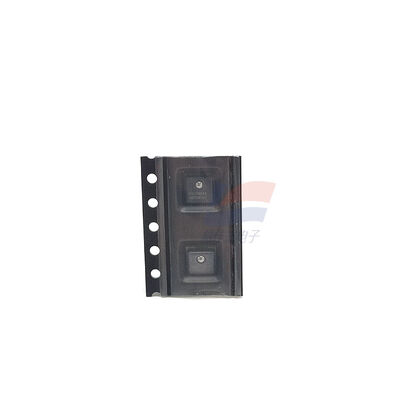

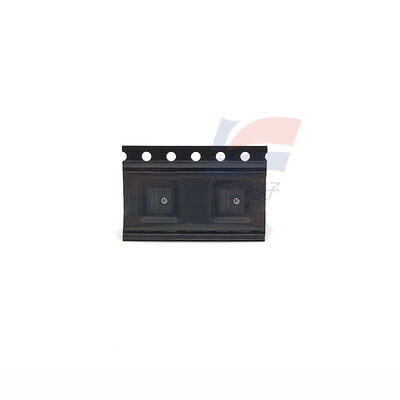

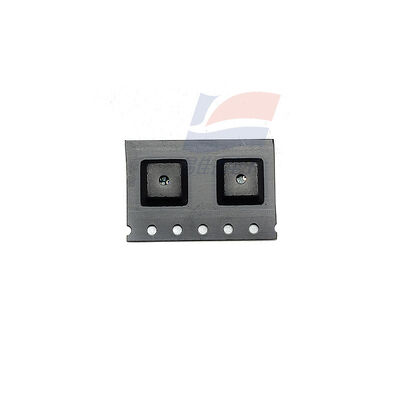

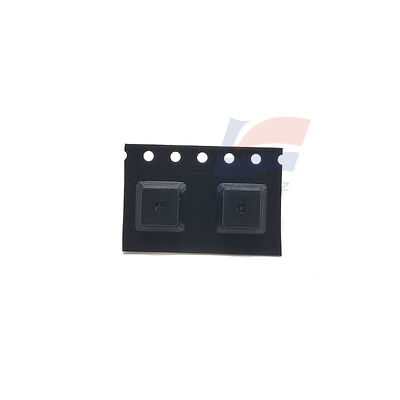

YJJ FMAMSDXX015WC2C3 Strain Gauge Digital Stainless Steel Ball Contact Type Micro Force Sensor 15N (1.53kgf)

Product Description:

YJJ FMAMSDXX015WC2C3 Strain Gauge Digital Stainless Steel Ball Contact Type Micro Force Sensor 15N (1.53kgf)

Features:

1. Key Parameters (Standard Version) Table

Parameters Values Remarks

Model FMAMSDXX015WC2C3 MicroForce FMA series

Range 0 - 15N (1.53kgf) Compression force measurement, overload protection 3× range

Output Digital I2C (address 0x28) 20% - 80% transmission function

Power Supply 3.3V DC (±10%) Power consumption 14mW

Accuracy ±2% FSS (typical) Non-linearity, hysteresis calibrated

Temperature Range -40℃ - +85℃ Full temperature range compensation (5℃ - 50℃ optimal)

Size 5mm × 5mm × 2.3mm Super small surface mount type, suitable for dense installation

Life 1,000,000 cycles Industrial grade reliability

Interface Stainless steel ball contact Direct mechanical coupling, stable and durable

Certifications RoHS, ISO 9001 Compliant with environmental protection

II. Working Principle

Based on the piezoresistive effect: When the silicon-based sensitive element is deformed by an external force, its resistance value changes linearly with the force.

Built-in ASIC chip: Factory calibration has been completed for offset, sensitivity, temperature drift, and non-linearity, no need for external circuit compensation.

Force is transmitted to the sensing core through the stainless steel ball, and a digital signal proportional to the pressure is output (I2C), with strong anti-interference and easy integration.

III. Typical Applications (Scenario-based)

1. Medical Equipment (High Precision + High Reliability)

Infusion pump / injection pump: Pressure feedback, pipe blockage detection, ensuring infusion accuracy and safety.

Dialysis machine: Fluid pressure monitoring, pipeline blockage warning.

Portable medical equipment: Miniature force control interaction (such as surgical instrument force feedback).

2. Industrial Automation and Robotics

Robot end effector: Precise control of grasping force (anti-drop / crushing prevention), assembly force monitoring.

Key / switch replacement: Touch sensation detection, force degree recognition (such as control panel, household appliance buttons).

Thin and light material detection: Film / paper tension, adhesion pressure measurement.

3. Consumer Electronics and Intelligent Interaction

Pressure-sensitive keys for smart devices: Force-level response (such as game controllers, touch pens).

Wearable devices: Contact force monitoring, posture recognition.

4. Testing and Measurement

Micro-pressure / force value calibration: Laboratory precision force reference, product feel testing.
