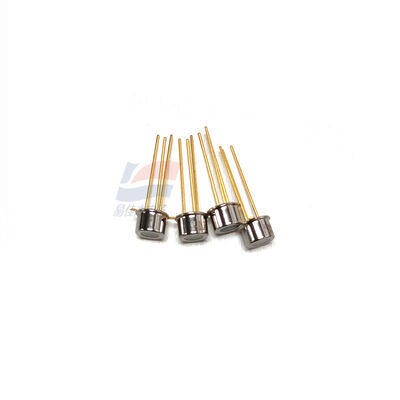

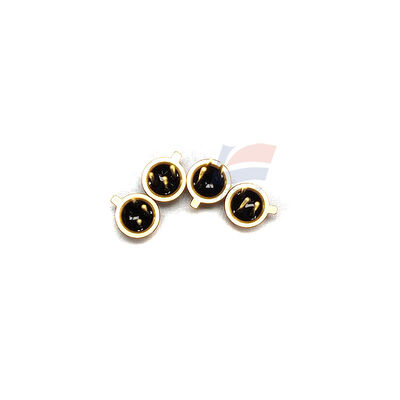

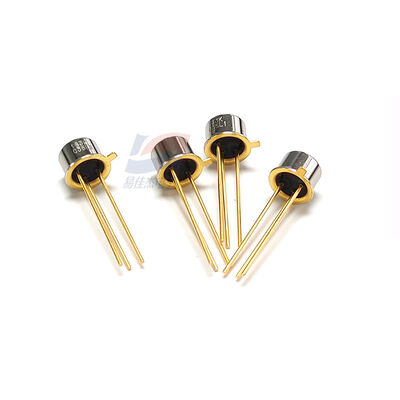

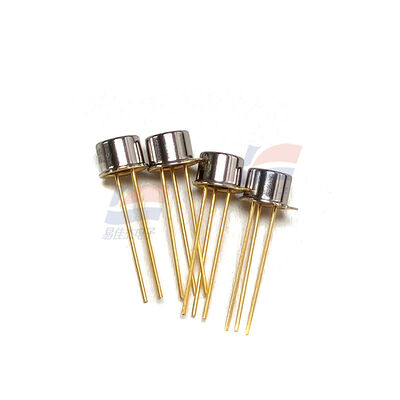

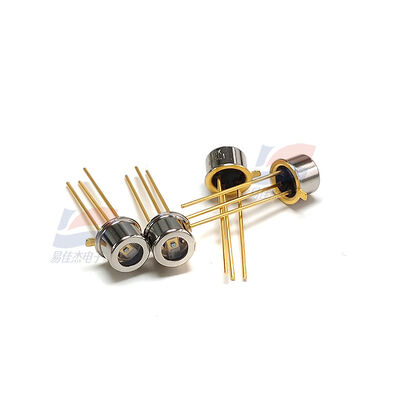

YJJ G12183-003K InGaAsPIN Photodiode for High-Speed Optical Detection Near-Infrared Long-Wave Infrared

Product Description:

YJJ G12183-003K InGaAsPIN Photodiode for High-Speed Optical Detection Near-Infrared Long-Wave Infrared

Features:

Sensitive area: φ1mm

Product characteristics

Low noise

Low junction capacitance

Low dark current

Sensitive area: φ1mm

Detailed parameter

The sensitive area is φ1mm

The number of pixels is 1

Encapsulation Metal

Encapsulation type: TO-18

Cooling mode Non-cooled

Spectral response range is 0.9 to 1.7 μm

The peak sensitivity wavelength (typical value) is 1.55 μm

Light sensitivity (typical value) 1.1 A/W

Dark current (Max.) 4 nA

Cut-off frequency (typical value) 60 MHz

Junction capacitance (typical value) 55 pF

Noise equivalent power (typical value) 1.4×10-14 W/Hz1/2

Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR= 5V, Cutoff frequency: VR= 5V, RL= 50Ω, -3 dB, Terminal capacitance: VR= 5V, f= 1MHz.
