AG206-050KPG Pressure Sensor Gauge Pressure Type Piezoresistive Miniaturization Suitable For Medical

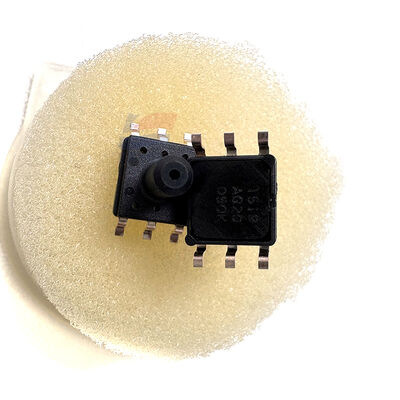

Large Image : AG206-050KPG Pressure Sensor Gauge Pressure Type Piezoresistive Miniaturization Suitable For Medical

Product Details:

Place of Origin:	Japan
Brand Name:	Fujikura
Model Number:	AG206-050KPG

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000PCS/Month

Contact Now

AG206-050KPG Pressure Sensor Gauge Pressure Type Piezoresistive Miniaturization Suitable For Medical

Description

Measuring Range:

0–50 KPa (approx. 7.25 Psi)

Accuracy:

±1.5% FS

Power Supply:

5.0 VDC

Output:

Analog Voltage

Highlight:

piezoresistive pressure sensor medical

miniature gauge pressure sensor

electronic pressure sensor with warranty

AG206-050KPG Pressure Sensor Gauge Pressure Type Piezoresistive Miniaturization Suitable For Medical

Key Features

Integrated ASIC: Built-in signal conditioning, amplification, temperature drift compensation, and calibration; direct output of high-level analog signals.

High Stability: Wide temperature compensation, low drift, suitable for precision measurements.

Compatible Replacement: Pin and package compatible with Fujikura XFGM/XFPM series for easy replacement.

Typical Applications
Medical Equipment (Ventilators, Blood Pressure Monitors)
Industrial Pneumatic Control
Home Appliances and Consumer Electronics
Battery-Powered Portable Devices

Specification:

Operating current	≤3 mA (5 V)
Temperature compensation	0～85°C; Operating temperature: -40～125°C
Response time	≤1 ms
Package	6-pin SMD, dimensions 7×7×9.5 mm; pressure port vertical, length 6 mm
Medium	Non-corrosive gas

AG206-050KPG Pressure Sensor Gauge Pressure Type Piezoresistive Miniaturization Suitable For Medical 0
