S12023-02 Low Bias Operation Infrared Si APD High Speed Response

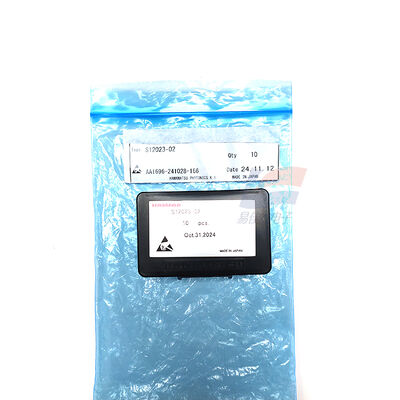

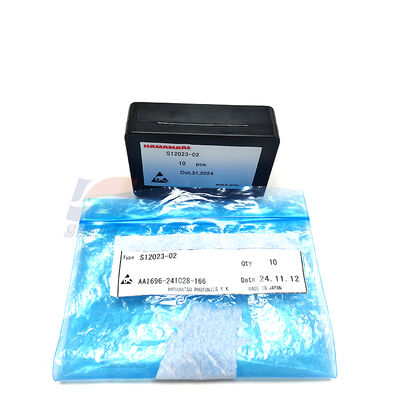

Large Image : S12023-02 Low Bias Operation Infrared Si APD High Speed Response

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S12023-02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000PCS/Month

Contact Now

S12023-02 Low Bias Operation Infrared Si APD High Speed Response

Description

Photosensitive Area:

φ0.2 Mm

Package:

Metal

Package Category:

TO-18

Peak Sensitivity Wavelength (typ.):

800 Nm

Highlight:

low bias infrared Si APD

high speed infrared photoelectric sensor

infrared APD with high speed response

S12023-02 Low Bias Operation Infrared Si APD High Speed Response

Low bias operation, for 800 nm band
This is a 800 nm band near-infrared Si APD that can operate at low voltages, 200 V or less. This is a suitable for applications such as FSO (free space optics) and optical rangefinders.

Features
- Stable operation at low bias
- High-speed response
- High sensitivity and low noise

Specification:

Spectral response range	400 to 1000 nm
Photosensitivity (typ.)	0.5 A/W
Dark current (max.)	0.5 nA
Cutoff frequency (typ.)	1000 MHz
Terminal capacitance (typ.)	1 pF
Breakdown voltage (typ.)	150 V
Temperature coefficient of breakdown voltage (typ.)	0.65 V/℃
Gain (typ.)	100

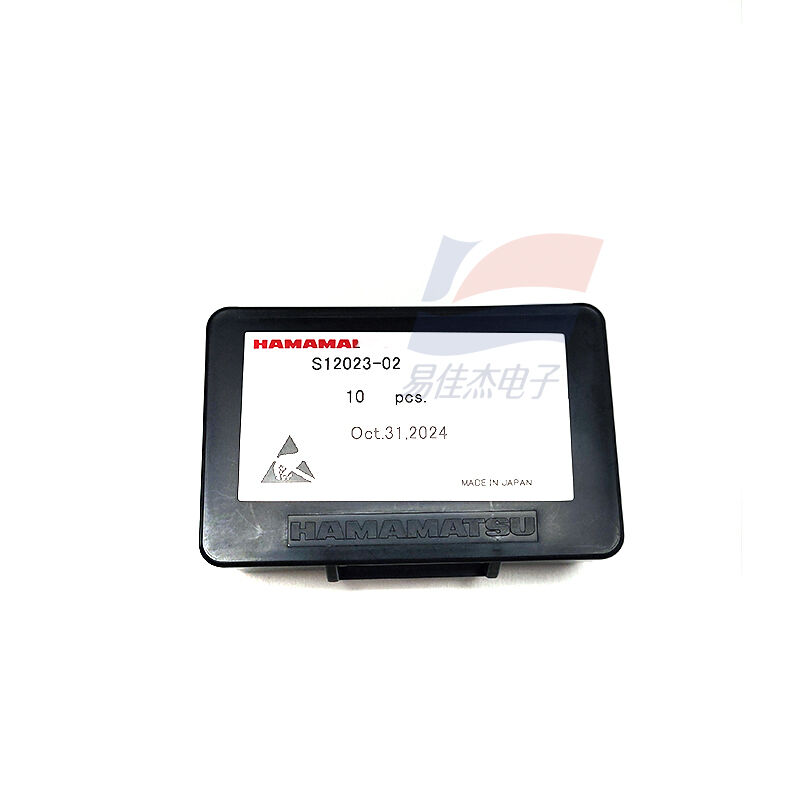

S12023-02 Low Bias Operation Infrared Si APD High Speed Response 0
