XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

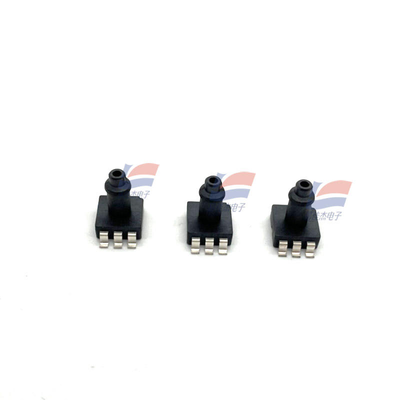

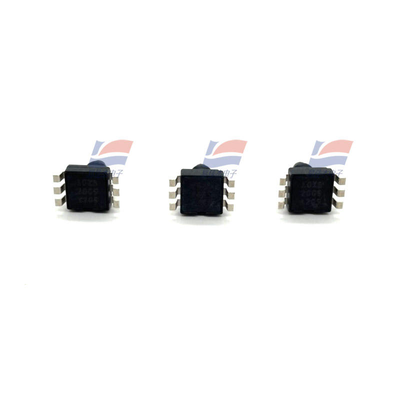

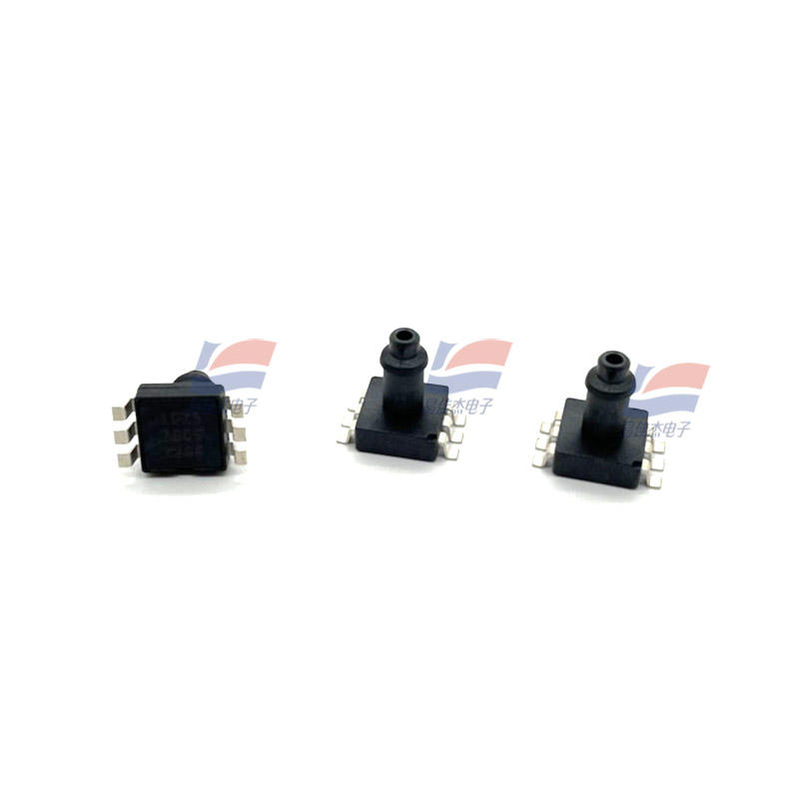

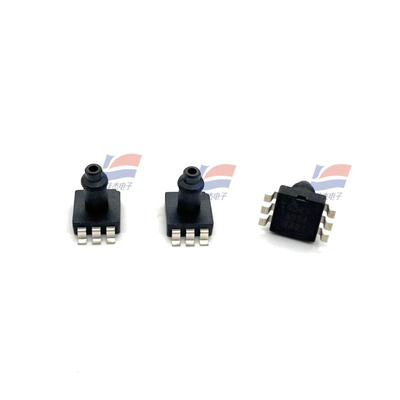

Large Image : XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

Product Details:

Place of Origin:	YJJ
Brand Name:	YJJ
Model Number:	XGZP163-101S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

Description

Range:

0–10 KPa

Output:

Typical 50 MV @ 5 V

Power Supply:

Constant Voltage 5 V

Bridge Resistance:

5 KΩ ± 1 KΩ

Highlight:

unamplified pressure sensor SOP-6

surface-mount pressure sensor XGZP163-101S

electronic pressure sensor with warranty

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing

The XGZP163-101S is a MEMS piezoresistive gauge pressure sensor featuring a 0–10 kPa measurement range and an SOP-6 surface-mount package with a vertical pressure port. Designed for low cost, compact size, and high stability, it is suitable for low-pressure measurement applications in medical devices and consumer electronics.

Typical Applications
* Medical: Electronic blood pressure monitors, ventilators, oxygen concentrators, patient monitors
* Consumer Electronics: Coffee machines, vacuum cleaners, humidifiers, pneumatic massage devices
* Industrial: Micro air pumps, air pressure monitoring, HVAC, pneumatic control

Specification:

Zero-point output	-5 to +10 mV
Full-scale output	35 to 65 mV (typical 50 mV)
Non-linearity	≤±0.5% FS
Operating temperature	-30°C to +100°C
Package	SOP-6; PPS housing; silver-plated copper pins; gold wire bonding; approx. 0.4 g
Pressure port	Vertical port with anti-slip design; compatible with φ4 mm tubing
Media	Non-corrosive dry air/gas

XGZP163-101S Pressure Sensors Unamplified Surface-Mount SOP-6 Packing 0
