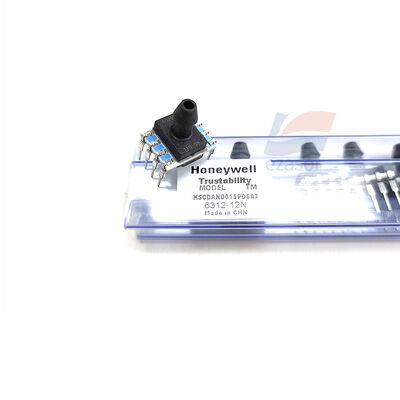

YJJ HSCDAND015PDSA3 Differential Pressure Sensor ±15psi SPI Output for HVAC & Gas Analyzer

Product Description:

YJJ HSCDAND015PDSA3 Differential Pressure Sensor ±15psi SPI Output for HVAC & Gas Analyzer

Features:

Specification

Model: HSCDAND015PDSA3

Series: TruStability® HSC

Sensor Type: Piezoresistive Differential Pressure Sensor

Specifications

Pressure Range: ±15 psi (±103.42 kPa)

Overpressure: 60 psi

Output: SPI Digital, Min.12-bit Resolution

Accuracy: ±0.25% FSS, Total Error Band ±1%FS

Supply Voltage: 3.3 VDC (3.0 ~ 3.6 VDC)

Supply Current: Typical 1.6 mA

Package: 8-DIP through-hole, single axial barbed port

Pin Count: 8 Pins

Environmental Spec:

Operating Temperature: -20℃ ~ +85℃

Compensated Temp Range: 0℃ ~ +50℃

Storage Temperature: -40℃ ~ +125℃

Media: Dry, non-corrosive gas

RoHS: RoHS Compliant

Mechanical Spec:

Port: Single axial barbed port, 4.93mm

Mounting: Through Hole soldering

Dimension: 10mm ×13.3mm ×13.75mm

Features:

TruStability high precision technology, low thermal drift; factory ASIC amplification and temperature compensation; SPI digital interface for direct MCU communication; built-in diagnostic functions to improve system reliability; 8-DIP through-hole package for easy OEM integration; virtually insensitive to mounting orientation, excellent long-term stability.

Applications:

Gas analyzer pressure sampling, HVAC duct differential pressure monitoring, air purifier, combustion equipment, medical devices, industrial instrument flow measurement, environmental monitoring instruments.
